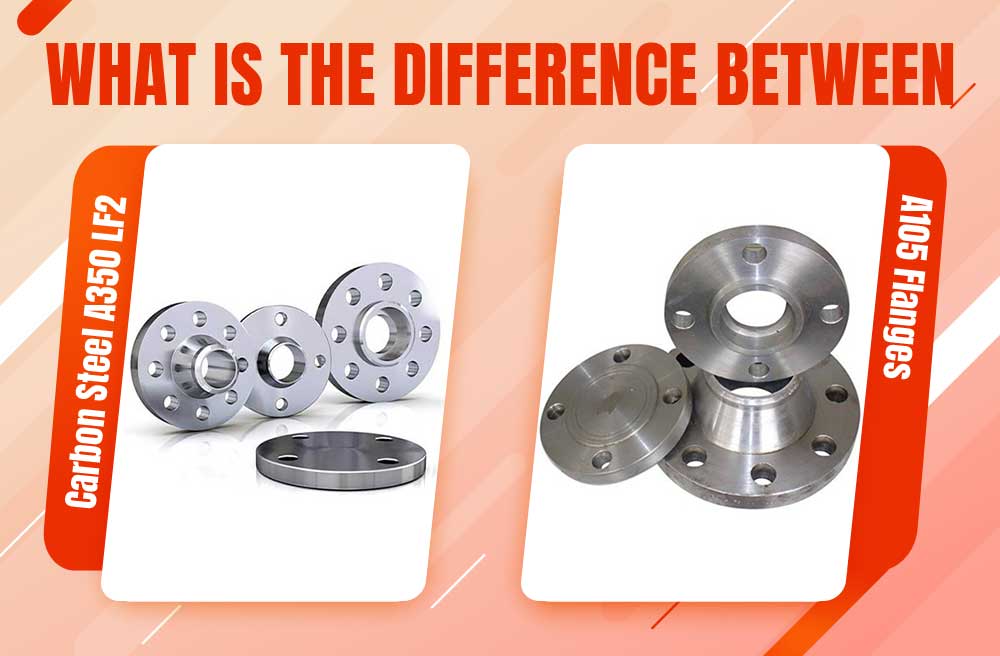

When choosing materials for flanges in industrial piping systems, it is essential to consider safety, durability, and longevity. Two of the most commonly used forged carbon steel flange grades are ASTM A350 LF2 and ASTM A105. A350 LF2 vs A105 Oftentimes, engineers and procurement experts are asking themselves the question of which one is better?
This is mainly a function of the temperature, mechanical characteristics and application requirements.Jay steel corporation is a trusted leader carbon steel A350 LF2 Flanges Manufacturer and Carbon Steel A105 Flanges manufacturing industry and a Carbon Steel A350 LF2 Flanges Exporter in India, offering the highest quality forged flanges for use in oil & gas, petrochemical, power generation, LNG and industrial piping systems.
What ASTM A105 Flanges are?
ASTM A105 is a forged carbon steel material specification for use in ambient and high temperature temperature service in a pressure system. They are widely used due to their superior strength, usability, weldability and cost effectiveness.
There are multiple types of A105 flanges typically available, such as:
- Weld Neck Flanges
- Slip-On Flanges
- Blind Flanges
- Socket Weld Flanges
- Threaded Flanges
- Lap Joint Flanges
For moderate to high temperature and pressure applications, these flanges are perfect for use in industries. ASTM A105 is one of the most popular forged carbon steel grades used in the piping industry.
Comprehension of ASTM A350 LF2 Flanges:
ASTM A350 LF2 is a carbon and low alloy steel forging specification that has been developed for low-temperature services. The “LF” is for “Low Temperature Forging.” These types of flanges are impact tested for toughness and resistance to brittle fracture at sub zero temperatures.
ASTM A350 LF2 is a material specification that applies to forged flanges, fittings and valves designed primarily for use in low-temperature applications where notch toughness is required. The uses of LF2 flanges are:
- LNG plants
- Cryogenic systems
- Offshore platforms
- Arctic pipelines
- Refrigeration industries
The processing plant for low temperature chemical processing.
Based on ASTM standards, it is recommended that the impact test be carried out at about -46°C (-50°F) to meet Class 1 flanges requirements for severe cold.
Using the A350 LF2 against the A105: key differences:
1. Temperature Resistance
The main distinguishing feature between ASTM A350 LF2 flange and ASTM A105 flange is the temperature range.
ASTM A105 can be used for ambient and elevated temperatures.
ASTM A350 LF2 is a specially developed low temperature specification.
A105 flanges can become less tough at low temperatures, while LF2 flanges remain ductile and are not prone to brittle fracture at low temperatures.
2. Impact Testing Requirement
Charpy V-Notch impact testing is required for ASTM A350 LF2 flanges to provide low temperature toughness. For most applications, such a test is not required by ASTM A105, unless it is required by project standards.
This results in greater reliability in LF2 for cryogenic and cold climate applications.
3. Chemical Composition
LF2 is a carbon steel forging with more stringent chemical composition control, particularly for carbon, sulphur and phosphorus composition. The lower the carbon content, the more toughness and cold weldability.
Typical Composition Differences
| Element | ASTM A105 | ASTM A350 LF2 |
| Carbon | Max 0.35% | Max 0.30% |
| Manganese | 0.60–1.05% | 0.60–1.35% |
| Phosphorus | Max 0.035% | Max 0.035% |
| Sulfur | Max 0.040% | Max 0.040% |
Optimized chemistry for better low-temperature toughness is included in LF2 material.
4. Heat Treatment
In most instances it is necessary to normalise or normalise and temper ASTM A350 LF2 to meet the necessary mechanical properties and impact resistance requirements. ASTM A105 can be supplied as-forged, unless otherwise stated.
5. Mechanical Properties
The materials have good strength, but LF2 possesses higher notch toughness and impact resistance at low temperatures.
Engaging in any of the following activities is strictly prohibited:Any of the following activities will not be permitted:
| Property | ASTM A105 | ASTM A350 LF2 |
| Tensile Strength | 485 MPa Min | 485–655 MPa |
| Yield Strength | 250 MPa Min | 250 MPa Min |
| Elongation | 22% | 22% |
| Low Temp Toughness | Limited | Excellent |
A105 vs LF2 Applications
By comprehending the differences in A105 vs LF2 applications, industries can select the correct material for performance and safety outcomes.
ASTM A105 flanges are very common in:
- Oil refineries
- Steam pipelines
- High-pressure industrial piping
- Power plants
- Petrochemical systems
- Water treatment plants
The preferred applications for these flanges are temperature above freezing and when cost is a factor.
This standard can be used for a wide range of applications in ASTM A350 LF2.
LF2 flanges come into use mostly with:
- LNG terminals
- Cryogenic piping systems
- Areas where oil & gas resources are found offshore.
- Arctic industrial plants
- Refrigeration systems
- Low-temperature pressure vessels
Their high low-temperature toughness is vital in extreme low-temperature service.
A350 LF2 vs A105 Which is Better?
This is dependent on the environment of the service.
Use ASTM A105 Flanges If
- The operating temperatures are moderate or high.
- Budget is a priority
- Low temp toughness is not needed
- The general industrial application is related
- When using ASTM A350 LF2 Flanges, select:
- The application is in freezing temperatures
- Cryogenic service is a must
- All products must meet the criteria for impact testing compliance.
- Safety is paramount in cold weather.
In simple terms:
A105 is cheap and flexible!
LF2 is more suitable for low-temperature use.
Why Choose Jay Steel Corporation?
Jay steel corporation is a leading A350 LF2 Flanges Manufacturer and carbon steel A105 Flanges Exporter in India that provide:
Precision-engineered forged flanges
Meets international ASTM and ASME standards
- Competitive pricing
For both high-pressure and low-temperature applications, there are solutions available for flange connections.
- Global export support
The custom dimensions and pressure classes are entered.
It provides high precision flanges to various industrial applications including oil & gas, petrochemical, marine, power and industrial fields globally.
Understanding the difference between ASTM A350 LF2 and ASTM A105 flanges is essential for selecting the right material for your piping system. While both are forged carbon steel flanges, their primary difference lies in temperature performance and impact toughness.
ASTM A105 is ideal for standard industrial applications operating at moderate and high temperatures, whereas ASTM A350 LF2 is specifically engineered for low-temperature and cryogenic services.
When evaluating A350 LF2 vs A105 which is better, the operating environment ultimately determines the best choice. For low-temperature reliability and enhanced safety, LF2 is the preferred option. For general-purpose industrial piping, A105 remains a highly economical and dependable solution.
To buy A350 LF2 and A105 Flanges of Premium Quality at an affordable A350 LF2 and A105 Flanges Price in India then you need to ‘Get in Touch’ with us at Jay steel corporation
FAQs
1. What is the main difference between ASTM A350 LF2 and ASTM A105 flanges?
The primary difference is that ASTM A350 LF2 is designed for low-temperature service with impact testing requirements, while ASTM A105 is intended for ambient and high-temperature applications.
2. Which is better: A350 LF2 vs A105?
A350 LF2 is better for cryogenic and sub-zero environments, while A105 is more economical for general industrial applications.
3. What are the common A105 vs LF2 applications?
A105 is commonly used in refineries, steam systems, and industrial piping, whereas LF2 is used in LNG plants, offshore platforms, and refrigeration systems.
4. What is ASTM A350 LF2 material specification?
ASTM A350 LF2 is a forged carbon steel specification for low-temperature flanges, fittings, and valves requiring notch toughness testing.
5. Can ASTM A350 LF2 flanges replace ASTM A105 flanges?
Yes, in many cases LF2 flanges can replace A105 because they offer similar strength with improved low-temperature toughness, provided project specifications permit substitution.
