ASTM A105 Forged Fittings

HomeASTM A105 Forged Fittings

ASTM A105 Forged Fittings | ASTM A105 Carbon Steel Forged Fittings | A105 Forged Elbow | ASTM A105 Socket Weld Fittings

Table of Content

What are ASTM A105 Forged Fittings?

‘High Strength’ is what Forged Fittings ASTM A105, carbon steel components, delivers. Typically, they are manufactured specifically using a forging process. They are used in piping systems because of their ability to handle high pressure, high temperature, and critical fluid flow.

Besides, you need to know that A105 Forged Elbow is one of the most commonly used carbon steel forging grades. This is due to its durability, machinability, and reliable mechanical performance.

More importantly, we at Jay Steel Corporation a leading  ASTM A105 Carbon Steel Forged Fittings Manufacturer in India offer you Premium Quality ASTM A105  Forged Fittings. We seek to deliver them across a wide range of industries such as oil & gas, petrochemical, power generation, marine, and refinery operations.

How does the ASTM A105 Forged Fittings function?

Typically, the ASTM A105 Carbon Steel Forged Fittings  work in the following ways given below:

  • Provision Strong, Pressure-Resistant Connections
  • Enables Pipeline Assembly and Routing
  • Creation of Leak-Proof Joints
  • Tolerates High Temperature
  • Guarantees long-life with low maintenance

ASTM A105 Forged Fittings Specifications Table

  • Standard: ASTM A105 – Carbon Steel Forgings for Piping Applications
  • Product Type : Forged Fittings (Socket Weld & Threaded), Flanges, Valves, and Components
  • Manufacturing Method : Forged, machined, heat-treated (as required)
  • Material Type: Carbon Steel (Open-Die or Closed-Die Forgings)
  • UNS Number: K03504
  • Available Classes: 2000, 3000, 6000 (Threaded) and 3000, 6000, 9000 (Socket Weld)
  • Applications: Oil & Gas, Petrochemical, Refinery, Power Plants, Shipbuilding, High-Pressure Piping
  • Chemical Composition: Carbon: 0.35% max , Manganese: 0.60–1.05% , Phosphorus: 0.035% max , Sulfur: 0.040% max , Silicon: 0.10–0.35% , Copper/Nickel/Chromium/Molybdenum: 0.40% max each
  • Mechanical Properties: Tensile Strength: 485 MPa (min) , Yield Strength: 250 MPa (min) , Elongation: 22% (min) , Hardness: 187 HBW max
  • Heat Treatment: Normally supplied in normalized, normalized and tempered, or quenched and tempered condition (N+T or Q+T if specified)
  • Pressure Rating: Conforms to ASME B16.11 and MSS-SP standards for pressure/temperature ratings
  • Dimensional Standards: ASME B16.11 (Forged Fittings), ASME B16.5 (Flanges), ASME B16.34 (Valves)
  • Types of Fittings: Elbows (45°/90°), Tees, Crosses, Couplings, Unions, Caps, Reducers, Plugs, Swage Nipples, Bosses
  • End Connections: Socket Weld (SW), Threaded (NPT / BSP)
  • Surface Finish: Smooth machined finish; Rust-preventive coating applied
  • Testing Requirements: Hardness Test, Tensile Test, Impact Test (if required), Hydrostatic Test, NDE (if specified)

Chemical Features of ASTM A105 Forged Fittings

Element Composition Range
Carbon (C) 0.35%
Manganese (Mn) 0.60 % – 1.05 %
Phosphorus (P) ≤ 0.035 % max
Sulfur (S) ≤ 0.040 % max
Silicon (Si) 0.10 % – 0.35 %
Copper (Cu) / Nickel (Ni) /Chromium (Cr) /Molybdenum (Mo) 0.10 % – 0.35 %

Mechanical Properties of ASTM A105 Forged Fittings

Property Requirement / Value
Tensile Strength (Minimum) 485 MPa (70,000 psi)
Yield Strength (Minimum) 250 MPa (36,000 psi)
Elongation (Minimum) 22%
Reduction of Area 30% minimum
Hardness (Maximum) 187 HBW or equivalent 89 HRB
Impact Toughness Not mandatory; Charpy test required only when specified for low-temperature service
Heat Treatment Condition Normally supplied as forged, optional normalized, normalized & tempered, or quenched & tempered
Ductility High ductility enabling forming, threading, and machining without cracking
Strength at Elevated Temperatures Maintains structural stability for high-pressure and moderate-temperature piping systems
Pressure Handling Suitable for Class 2000, 3000, 6000 (and higher for special forged components)

Types of ASTM A105 Forged Fittings

Some of the few Types of ASTM A105 Carbon Steel Forged Fittings are given below :

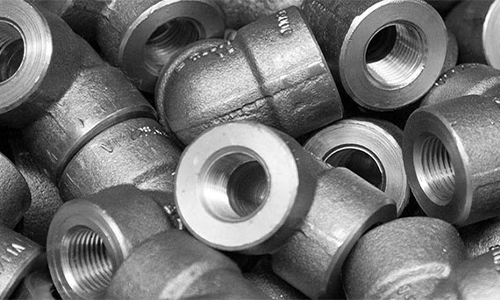

Carbon Steel Forged Elbow

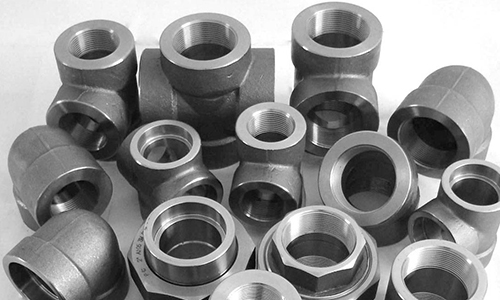

Carbon Steel Forged Coupling

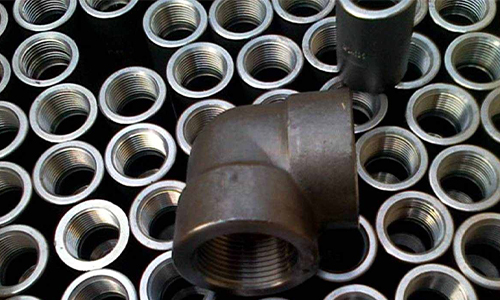

Carbon Steel Forged Plug

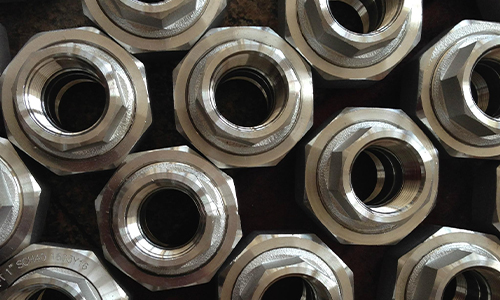

Carbon Steel Forged Union
Carbon Steel Forged Pipe Nipple
Carbon Steel Forged Bushing
Carbon Steel Forged End Cap

Request the latest ASTM A105 Forged Fittings Price List. Please Call +91222380 5075 or Send an Email to info@jaysteelcorporation.co.in for ASTM A105 Forged Fittings Ready stock information and updated price list.

CONTACT JAY STEEL CORPORATION TODAY FOR A BEST OFFER & COMPETITIVE QUOTATION OF ASTM A105 Forged Fittings

Equivalent Grades of ASTM A105 Forged Fittings

Standard Equivalent Grade Notes
ASTM ASTM A105 Standard for carbon steel forged piping components
ASME ASME SA105 ASME pressure-grade equivalent of ASTM A105
UNS K03504 Unified numbering system designation for carbon steel used in A105 forgings
EN / DIN C22.8 / 1.0460 Closest European equivalent used for pressure equipment forgings
BS (British Standard) 1503-161-430A Approximate equivalent used for pressure and high-temperature service
JIS (Japan) SF440A Japanese forged carbon steel grade comparable to A105
GOST (Russia) 20, 20A Russian carbon steel grades used in pressure applications; not exact but commonly referenced equivalents

ASTM A105 Forged Fittings Price in India:

Some of the key factors that determine the Forged Fittings Price in India are given below:

  • Raw Material Cost
  • Fitting Size & Weight
  • Complexity of Shape / Machining Effort
  • Connection Type (Socket-weld, Threaded)
  • Heat Treatment / Certification / Testing Requirements
  • Market Demand & Supply / Lead Time
  • Manufacturer / Supplier Overhead & Quality Control
  • Logistics, Freight & GST / Taxes

CONTACT JAY STEEL CORPORATION

Drop your size, quantity, and delivery location

Industrial Applications of ASTM A105 Forged Fittings

It is because of the strength and durability of ASTM A105 Socket Weld Fittings that they are used in a wide range of industries as applications. They are given below:

Application Industries
  • Petrochemical & Chemical Industry
  • Power Generation Plants
  • Refinery & Process Plants
  • Industrial Manufacturing Facilities
  • HVAC & Fire-Fighting Systems
  • Construction & Infrastructure Pipelines
  • General Engineering Applications

Why Choose Jay Steel Corporation to buy ASTM A105 Forged Fittings?

There are few reasons why you need to choose ASTM A105 Carbon Steel Forged Fittings from Jay Steel Corporation, a leading A105  Forged Fittings Manufacturers in India. They are as follows:

  • Wide Range of Products & Sizes
  • Reliable Quality & Industry Compliance
  • Tailored Solutions & Customization
  • Strong Industry Experience & Supply Chain
  • Timely Delivery & Excellent Support
  • Great reputation and reliability

Our Export Destinations

United Arab Emirates, Kuwait, United States Of America, Egypt, Qatar, Kingdom Of Saudi Arabia, Jordan, Africa, Malaysia, Europe, Australia, Iran, Iraq.

FAQs

What is ASTM A105 material used for in forged fittings?

There are few major purposes for which Forged Fittings ASTM A105 are used. They are given below:

  • High-Pressure Piping Systems
  • Oil & Gas Industry Applications
  • Petrochemical & Chemical Plants
  • Power Plants & Boiler Systems
  • Industrial & Mechanical Engineering Piping
  • Valve, Flange & Pressure Component Manufacturing

What are the different types of ASTM A105 forged fittings?

A few Types of Forged Fittings ASTM A105 are given below:

  • Elbows (45° & 90°)
  • Tees & Crosses
  • Couplings (Full & Half)
  • Unions
  • Caps
  • Plugs & Bushings
  • Reducers (Concentric & Eccentric)

Are ASTM A105 forged fittings suitable for high-pressure applications?

Since Forged Fittings ASTM A105 are manufactured using forged carbon steel which is known for durability, they are ideally suited for high-pressure applications.

How do ASTM A105 forged fittings differ from A350 LF2 fittings?

Usually ASTM A105 forged fitting and A350 LF2 fittings differ from each other in the following ways given below:

  • Material Composition
  • Temperature tolerance
  • Impact Testing
  • Heat Treatment
  • Application Areas

What are the standard dimensions and pressure ratings for ASTM A105 forged fittings?

Typically, the pressure ratings and standard dimensions for Forged Fittings ASTM A105  are given below:

  • Pressure Ratings: Class 2000, Class 3000, Class 6000, Class 9000
  • Dimensional Standards range from 1/8 inch to 4 inches (DN 6 to DN 100)
