ASTM A53 GR. B Carbon Steel Pipes | ASTM A53 Carbon Steel Pipe | Carbon Steel Pipes for Construction | ASTM A53 GR. B Pipe Supplier | ASTM A53 Seamless & Welded Pipes | Industrial Carbon Steel Pipes
Table of Content
- # What are ASTM A53 GR. B Carbon Steel Pipes?
- # ASTM A53 GR. B Carbon Steel Pipes Specifications Table
- # Chemical Features of ASTM A53 GR. B Carbon Steel Pipes
- # Mechanical Properties of ASTM A53 GR. B Carbon Steel Pipes
- # Types of ASTM A53 GR. B Carbon Steel Pipes
- # Equivalent Grades of ASTM A53 GR. B Carbon Steel Pipes
- # Industrial Applications of ASTM A53 GR. B Carbon Steel Pipes
- # Why Choose Jay Steel Corporation to buy ASTM A53 GR. B Carbon Steel Pipes?
- # FAQs
What are ASTM A53 GR. B Carbon Steel Pipes?
ASTM A53 GR. B Carbon Steel Pipes Specifications Table
- Standard : ASTM A53 / ASME SA53
- Material Type : Carbon Steel
- Grades : A, B (B = higher strength)
- Types : Type S (Seamless), Type E (ERW), Type F (Furnace-welded)
- Schedules : SCH 40, SCH 80, SCH 160, XS, XXS (various)
- Sizes : ½″ NB up to 36″ NB
- Ends : Plain, Beveled, Threaded
- Surface : Black, Bare, Galvanized
Chemical Features of ASTM A53 GR. B Carbon Steel Pipes
Mechanical Properties of ASTM A53 GR. B Carbon Steel Pipes
| Property | Value |
| Tensile Strength, min | 415 MPa (60,000 psi) |
| Yield Strength, min | 240 MPa (35,000 psi) |
| Elongation (in 50 mm or 2 in.) | Typically 20% – 30% (varies by pipe dimensions) |
| Hardness (Brinell HBW) | Approx. ≤ 126 HBW (not explicitly required but typical for Grade B) |
| Modulus of Elasticity | ~200 GPa (29,000 ksi) (typical for carbon steel) |
| Melting Point | ~1515°C – 1540°C |
| Density | 7.85 g/cm³ |
| Impact Strength | Good toughness at room temperature (not specified but generally tested where required) |
Types of ASTM A53 GR. B Carbon Steel Pipes
Usually, Carbon Steel Pipes ASTM A53 GR is available in different types as per manufacturing process, shape, and applications. They are as used as following:

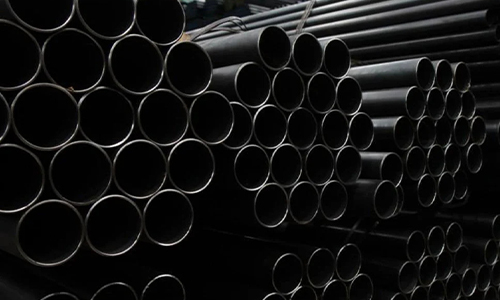

Carbon Steel A53 Gr B Seamless Pipe

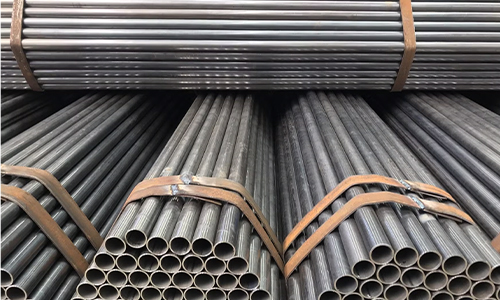

Carbon Steel A53 Gr B Welded Pipe

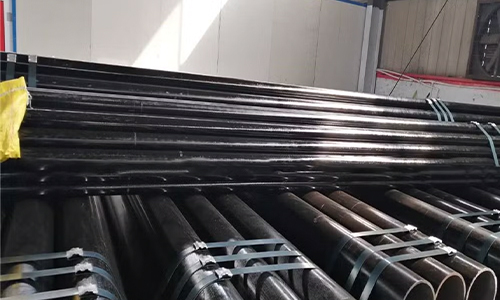

ASTM A53 Grade B Black Pipe
Equivalent Grades of ASTM A53 GR. B Carbon Steel Pipes
CONTACT JAY STEEL CORPORATION
Industrial Applications of ASTM A53 GR. B Carbon Steel Pipes
Why Choose Jay Steel Corporation to buy ASTM A53 GR. B Carbon Steel Pipes?
FAQs
What is the difference between seamless and welded ASTM A53 GR. B Pipes?
The differences between seamless and welded ASTM A53 GR. B Pipes are given in the table below:
| Feature | Seamless ASTM A53 GR. B Pipe | Welded ASTM A53 GR. B Pipe |
| Manufacturing Process | Extruded or rolled from a solid billet; no seam | Rolled from steel strip/plate and welded along the seam |
| Structure | Homogeneous, no joints | Has a welded seam |
| Pressure Resistance | High, suitable for high-pressure applications | Moderate, suitable for low to medium pressure |
| Strength & Durability | Uniform strength throughout | Slightly lower strength due to welded joint |
| Applications | Boilers, oil & gas, chemical industries, high-pressure systems | Water, gas, structural projects, general-purpose pipelines |
| Cost | Higher | Lower |
What industries use ASTM A53 GR. B Pipes?
It is due to the ‘Ability’, ‘Versatility’ and ‘Strength’ of withstanding various temperatures and pressures that Carbon Steel Pipes ASTM A53 GR. B are used in a wide range of industries given below:
- Construction
- Oil & Gas
- Water & Sewage
- Automotive & Machinery
- Chemical & Petrochemical
- Shipbuilding & Marine
- Agriculture & Irrigation
How to verify ASTM certification?
There are a few steps that you need to follow given below to verify ASTM certification. They are given below:
- Check the Certification Document
- Verify the Issuing Laboratory or Certification Body
- Cross-Check Test Reports
- Contact the Manufacturer or Supplier
- Optional: Independent Verification
