What are ASTM A106 GR. B Carbon Steel Pipes?
ASTM A106 GR. B Carbon Steel Pipes Specifications Table
- Standard : ASTM A106 / ASME SA106
- Grade : Grade B
- Product Type : Seamless Carbon Steel Pipes
- Manufacturing Process : Hot Rolled / Cold Drawn
- Size Range : NPS 1/8" to 48"
- Outer Diameter (OD) : 10.3 mm – 1219 mm
- Wall Thickness (WT) : SCH 10, 20, 40, 60, 80, 120, 160, XXS
- Length : Single Random (SRL), Double Random (DRL), or Cut Length
- Ends : Plain End (PE), Beveled End (BE), Threaded End (TE)
- Surface Finish : Black / Varnished / Oiled / Galvanized
- Applications : High-temperature services such as boilers, refineries, power plants, petrochemicals, steam lines
- Testing Requirements : Hydrostatic Test, Nondestructive Electric Test, Bending Test, Flattening Test
- Maximum Allowable Hardness : 79 HRB max
- Delivery Condition : Hot Finished or Cold Drawn
- Heat Treatment : Normalized (when required for heavy-wall pipes)
- Pipe Form : Round
Chemical Features of ASTM A106 GR. B Carbon Steel Pipes
Mechanical Properties of ASTM A106 GR. B Carbon Steel Pipes
Types of ASTM A106 GR. B Carbon Steel Pipes
There are various Carbon Steel Pipes ASTM A106 GR. B Types based on manufacturing process and end-use applications. They are as follows:

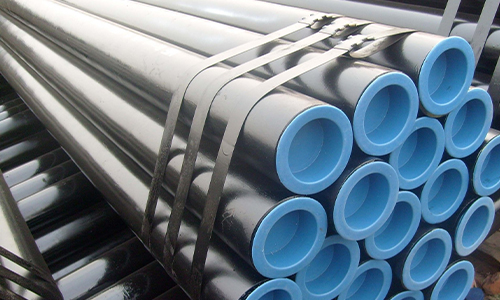

ASTM A106 Gr B Sch 40 Pipe

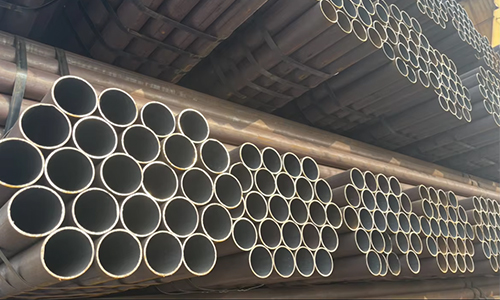

A106 Grade B Seamless Pipe

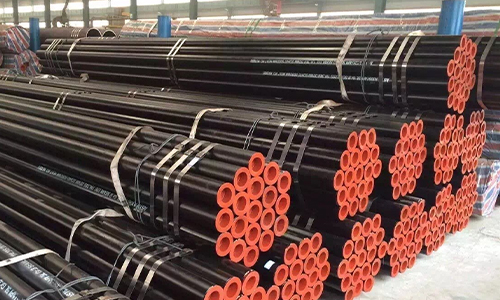

A106 Gr B Welded Pipe

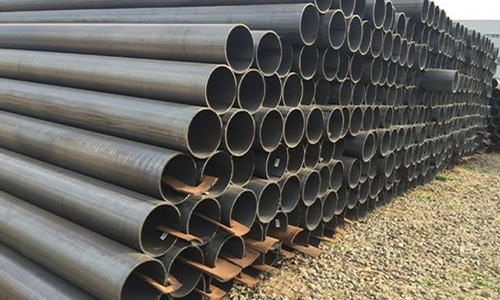

A106 Gr B ERW Pipe

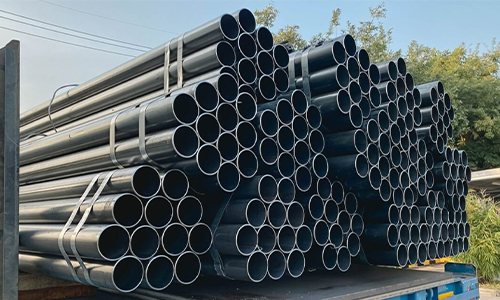

A106 Pipe

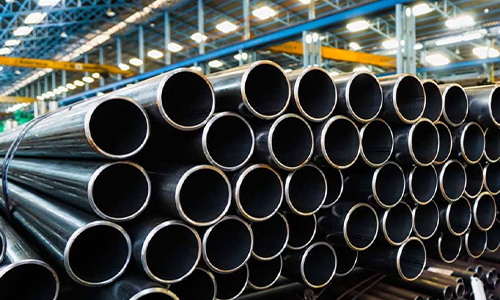

ASTM A106 GR. B Carbon Steel Pipes
Equivalent Grades of ASTM A106 GR. B Carbon Steel Pipes
CONTACT JAY STEEL CORPORATION
Industrial Applications of ASTM A106 GR. B Carbon Steel Pipes
Why Choose Jay Steel Corporation ?
FAQs
What is ASTM A106 GR. B Carbon Steel Pipe?
A standard specification for seamless carbon steel pipes is represented by Carbon Steel Pipes ASTM A106 GR. B. Typically, they are designed to tolerate high temperature and pressure. Hence they are ideally suited for conveying liquids and gases in several industries. These include oil and gas, power plants, and petrochemical sectors.
What are the differences between ASTM A106 GR. B and GR. A pipes?
There are several differences that exist between ASTM A106 GR. B and GR. A pipes that are given in the table below:
| Feature | ASTM A106 Grade A | ASTM A106 Grade B |
| Carbon Content (C) | Max 0.30% | Max 0.30% |
| Manganese (Mn) | 0.29–0.60% | 0.29–1.06% |
| Phosphorus (P) | Max 0.035% | Max 0.035% |
| Sulfur (S) | Max 0.035% | Max 0.035% |
| Tensile Strength | 48–60 ksi (330–415 MPa) | 60–70 ksi (415–485 MPa) |
| Yield Strength | Min 30 ksi (205 MPa) | Min 35 ksi (240 MPa) |
| Elongation (%) | Min 30% | Min 30% |
| Impact Resistance | Lower than Grade B | Higher than Grade A (better for higher-pressure service) |
| Application Pressure Rating | Lower-pressure applications | Medium- to higher-pressure applications |
| Cost | Slightly lower | Slightly higher due to better strength |
What industries use ASTM A106 GR. B Pipes?
Usually, because of the ability of the Carbon Steel Pipes ASTM A106 GR. B to tolerate high pressure and temperature they are used in a wide range of industries as applications. They are as follows:
- Power Generation
- Oil & Gas
- Petrochemical
- Refineries
- Shipbuilding & Marine
- Construction & Infrastructure
- Automotive & Engineering
What is the difference between seamless and welded ASTM A106 GR. B pipes?
There are several differences that exist between seamless and welded ASTM A106 GR. B pipes. They are given in the table below:
| Feature | Seamless ASTM A106 GR. B Pipe | Welded ASTM A106 GR. B Pipe |
| Manufacturing Process | Made by extruding a solid billet, then forming it into a pipe without any seams. | Made by rolling a flat plate or strip and welding the seam (ERW, SAW, or other welding methods). |
| Seam Presence | No seam (hence “seamless”), uniform structure. | Has a welded seam along the length of the pipe. |
| Pressure Handling | Can handle higher pressures due to uniform strength and no weak points. | Slightly lower pressure rating; the welded seam may be a potential weak spot. |
| Surface Finish | Smooth internal and external surface, minimal defects. | Internal surface may have slight irregularities at the weld; external finish can vary. |
| Cost | Typically more expensive due to complex manufacturing. | Usually more economical, especially in large diameters. |
| Size Availability | Limited to smaller diameters and standard wall thicknesses. | Available in larger diameters and a wider range of thicknesses. |
| Applications | High-pressure, high-temperature services like oil & gas, power plants, refineries, and chemical industries. | Moderate-pressure applications like water pipelines, gas pipelines, and structural uses. |
How can I verify the ASTM certification of the pipes?
There are a few steps that you need to follow given below to verify ASTM certification. They are given below:
- Check the Certification Document
- Verify the Issuing Laboratory or Certification Body
- Cross-Check Test Reports
- Contact the Manufacturer or Supplier
- Optional: Independent Verification
