ASTM A105 Carbon Steel Round Bars | A105 Carbon Steel Bar Supplier | Carbon Steel Round Bar Exporter | ASTM A105 Bar Manufacturer India
Table of Content
- # What are ASTM A105 Carbon Steel Round Bars?
- # How does the ASTM A105 Carbon Steel Round Bars function?
- # ASTM A105 Carbon Steel Round Bars Specifications Table
- # Chemical Features of ASTM A105 Carbon Steel Round Bars
- # Mechanical Properties of ASTM A105 Carbon Steel Round Bars
- # Types of ASTM A105 Carbon Steel Round Bars
- # Equivalent Grades of ASTM A105 Carbon Steel Round Bars
- # ASTM A105 Carbon Steel Round Bars Price in India
- # Industrial Applications of ASTM A105 Carbon Steel Round Bars
- # Why Choose Jay Steel Corporation to buy ASTM A105 Carbon Steel Round Bars?
- # FAQs
What are ASTM A105 Carbon Steel Round Bars?
How does the ASTM A105 Carbon Steel Round Bars function?
ASTM A105 Carbon Steel Round Bars Specifications Table
- Standard : ASTM A105 / ASME SA105
- Product Form : Forged Carbon Steel Round Bars
- Manufacturing Process : Hot Forged / Rolled / Normalized
- Material Type : Carbon Steel (Forgings for Piping Applications)
- Density : 7.85 g/cm³
- Tensile Strength (Min.) : 485 MPa (70 ksi)
- Yield Strength (Min.) : 250 MPa (36 ksi)
- Elongation (Min.) : 22%
- Reduction of Area (Min.)30%
- Hardness : ≤187 HBW (or 179 HB max in some specs)
- Impact Test : Not required unless specified
- Heat Treatment : Normalizing, Quenching & Tempering (if specified), Forging
- Size Range : 10 mm to 600 mm (varies by manufacturer)
- Applications :Flanges, Fittings, Valve Components, Pressure Systems
Chemical Features of ASTM A105 Carbon Steel Round Bars:
Mechanical Properties of ASTM A105 Carbon Steel Round Bars
| Property | Value |
| Tensile Strength (Min.) | 485 MPa (70,000 psi) |
| Yield Strength (Min.) | 250 MPa (36,000 psi) |
| Elongation (Min.) | 30% |
| Reduction of Area (Min.) | 30% |
| Brinell Hardness (Max.) | 187 HB |
| Rockwell Hardness (Max.) | 90 HRB |
| Impact Strength (Typical) | 27 J (Charpy V-Notch) |
| Modulus of Elasticity | 200–210 GPa |
| Density | 7.85 g/cm³ |
Types of ASTM A105 Carbon Steel Round Bars
The different Types of ASTM A105 Carbon Steel Round Bars are given below:

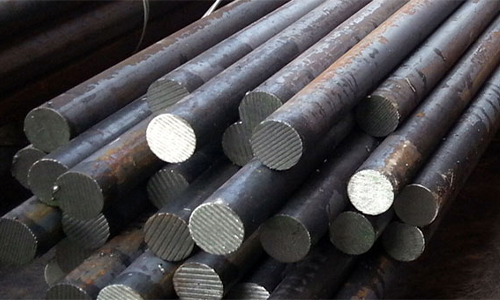

Carbon Steel A105 Round Bars

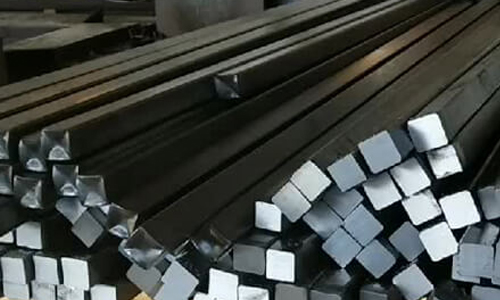

Carbon Steel A105 Square Bars

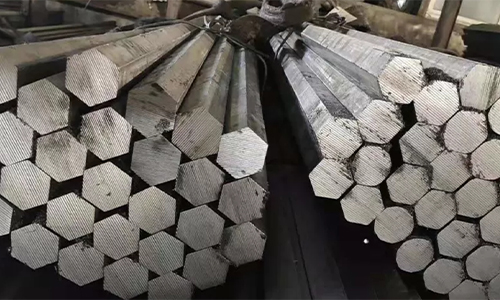

Carbon Steel A105 Hex Bars

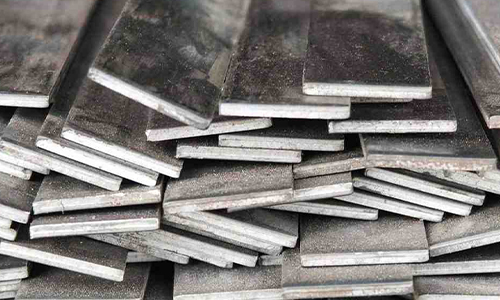

Carbon Steel A105 Flat Bars

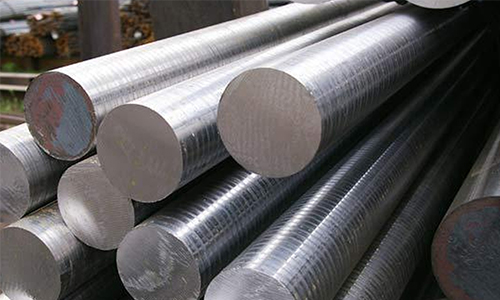

Carbon Steel A105 Bright Bars

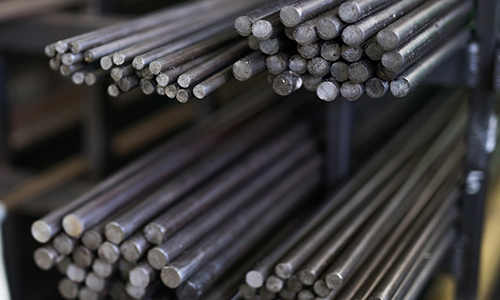

Carbon Steel A105 Forged Rods
Carbon Steel A105 Black Bars
Carbon Steel A105 Threaded Bars
Equivalent Grades of ASTM A105 Carbon Steel Round Bars
| Standard | Equivalent Grade | Notes |
| ASTM | A105 | Standard carbon steel forging grade |
| ASME | SA105 | ASME version of ASTM A105 |
| EN (DIN) | C22.8 (1.0460) | Closest European equivalent for forged carbon steel components |
| JIS | SF440A | Forged carbon steel used for flanges & fittings |
| BS (British Standard) | 1503-161-430A | Comparable to A105 forging grade |
| ISO | C22 | Similar chemical composition & strength |
| UNI (Italy) | GS-C22 | Equivalent forging-quality carbon steel |
ASTM A105 Carbon Steel Round Bars Price in India
CONTACT JAY STEEL CORPORATION
Industrial Applications of ASTM A105 Carbon Steel Round Bars
Why Choose Jay Steel Corporation to buy ASTM A105 Carbon Steel Round Bars?
FAQs
What is ASTM A105 Carbon Steel Round Bar used for?
It is because of the strength and durability of Carbon Steel Round Bars ASTM A105 that they are used in a wide range of industries as applications. They are given below:
- Pressure Vessels & Piping Systems
- Power Generation
- Oil & Gas Industry
- Industrial Machinery Components
- Construction & Fabrication
- Marine Engineering
Is ASTM A105 suitable for high-temperature applications?
Yes Carbon Steel Round Bars manufactured as per ASTM A105 standard is ideally suited for high temperature applications. They are used for the following components given below:
- Flanges
- Valves
- Fittings
- Nozzles
- Pressure retaining components
What sizes are available for ASTM A105 Round Bars?
The Carbon Steel Round Bars ASTM A105 are given in a table below:
| Category | Details |
| Diameter Range | 6 mm to 450 mm (standard) |
| Large Diameters | 450 mm to 800 mm (forged, made-to-order) |
| Common Sizes | 6, 8, 10, 12, 16, 20, 25, 32, 40, 50, 63, 75, 90, 100, 125, 150, 200+ mm |
| Available Forms | Hot Rolled, Cold Drawn, Forged, Peeled/Turned/Polished |
| Length Options | 3 meters, 6 meters, Custom cut-to-length |
Do you export ASTM A105 Round Bars internationally?
Yes we at Jay Steel Corporation the best ASTM A105 Carbon Steel Round Bars manufacturer in India do export Carbon Steel Round Bars ASTM A105 and other products internationally. Some of the countries include several countries across Asia, the Middle East, Europe, Africa, and the Americas, including the USA, UK, Germany, Saudi Arabia, Nigeria, Singapore, Malaysia, and more.
